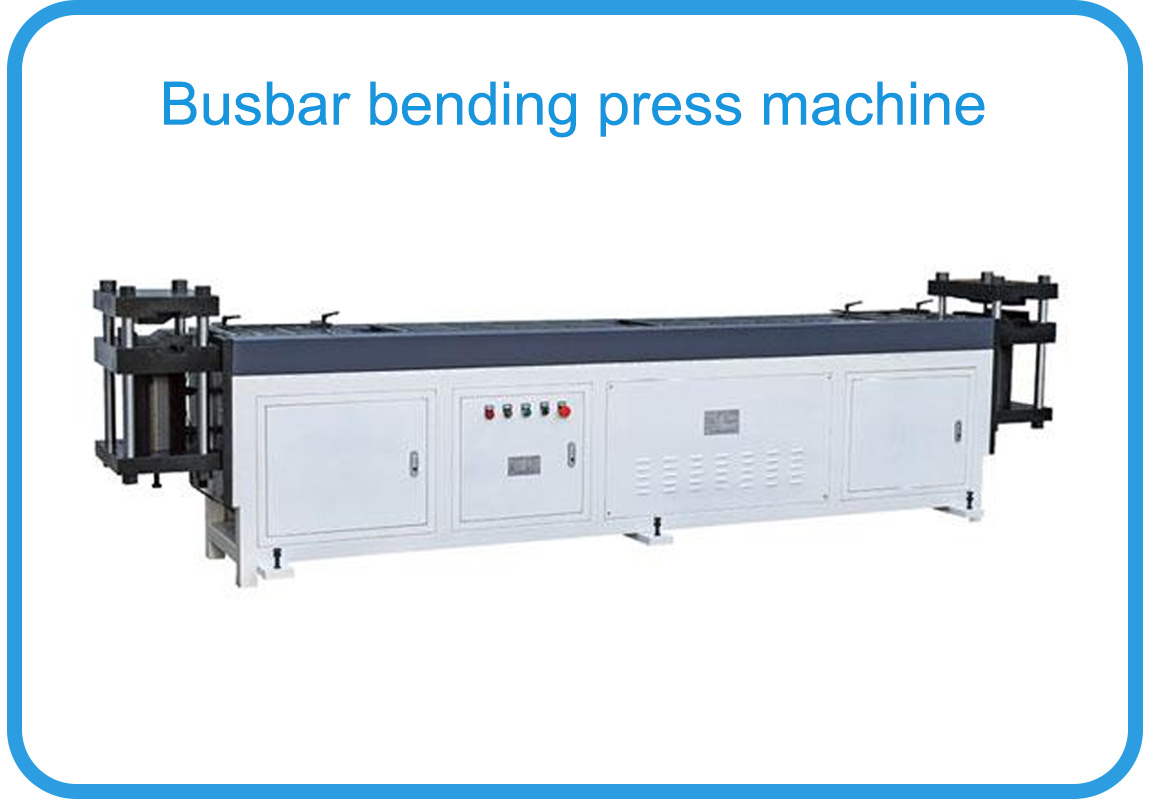

BUSBAR DOUBLE-END BENDING PRESS MACHINE

Busbar double-end bending press machine is mainly used for bending press the busbars at both ends used in the busway industry.

Category:

BUSBAR PROCESSING MACHINE


Product Display





Product Features



1.The main engine at both ends of the machine adopt hydraulic working mode, which has advantages such as high pressure and stable performance.

2.The busbar is formed by double bending at both ends one time, with fast processing speed and high work efficiency.

3.The combination of large tonnage hydraulic cylinders and large flow piston pumps ensures the operating speed of the equipment.

4.The main components are all from well-known brands, ensuring the stability of the entire equipment.





Technical Parameter



Name

Unit

Parameter

Nominal pressure

KN

800

Processing scope

mm

3×30-8×250

Total power

KW

5.5

Outline dimension

mm

3600×1000×1300

Total weight

KG

1500

Support customization according to customer requirements.
