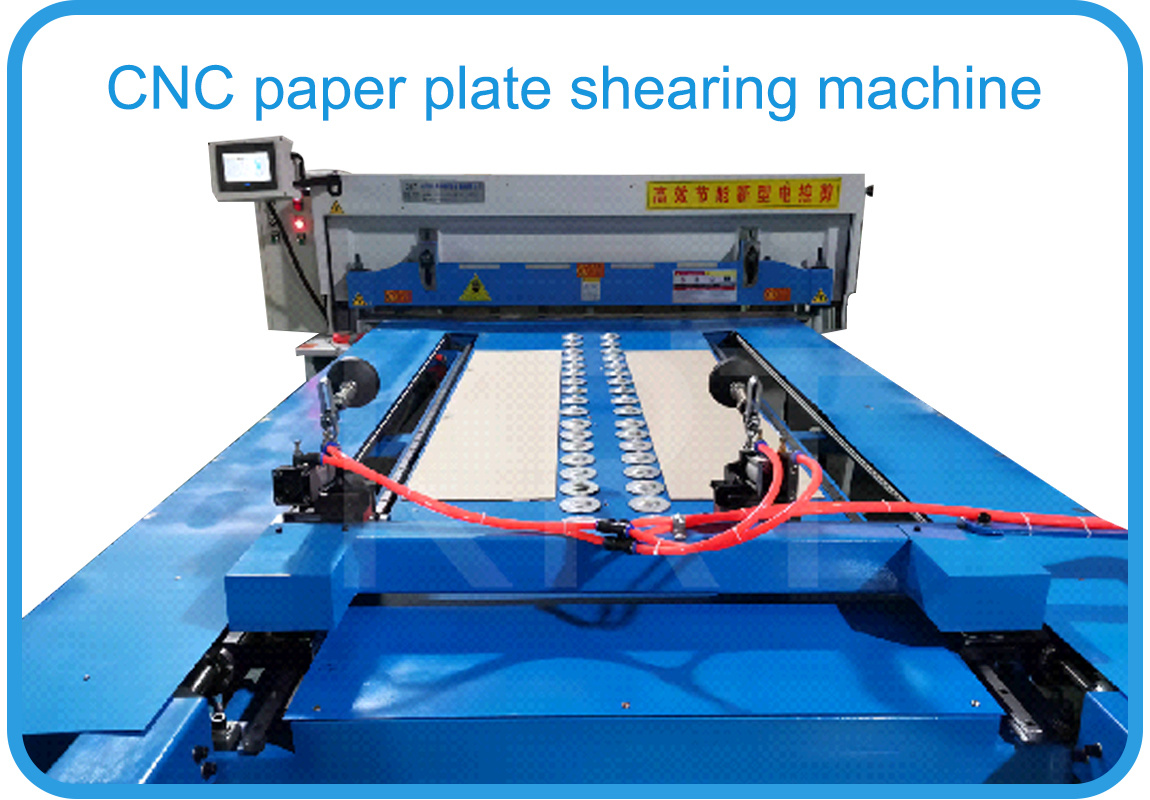

CNC FEEDING PAPER PLATE SHEARING MACHINE

This equipment is mainly used for cutting insulating paperboard and making transformer support bars. It adopts CNC automatic feeding, and the feeding length can be set separately to achieve the cutting of cardboard size and width. By inputting the desired cutting width through the touch screen, the device can automatically cut out the required size specifications, improving cutting accuracy and efficiency.

Category:

INSULATION PROCESSING EQUIPMENT


Product Display





Technical Parameters

Parameter

SLJB-1600SK-2

CNC dual axis feeding paperboard shearing machine

SLJB-2000SK-2

CNC dual axis feeding paperboard shearing machine

Max thickness

0.5-3mm

0.5-3mm

Max width

1600mm

2000mm

Max length of clamped cardboard

2000mm

2200mm

Accuracy of servo repetitive positioning

±0.1mm

±0.1mm

Accuracy of equipment cutting

±0.2mmAccuracy of edge width at both ends ± 0.5

±0.2mmAccuracy of edge width at both ends ± 0.5

Number of idle strokes

60time/min

60time/min

Speed of dual Axis feeding

10M/min(adjustable)

10M/min(adjustable)

The scope of feeding control

5-600mm

5-600mm

Width of the cutting banner

5-500mm

5-500mm

External dimensions of the equipment

4500x2200x1300mm

4700x2600x1300mm

Power

5KW

6KW

Weight

2T

2.3T

Support customization according to customer requirements.
