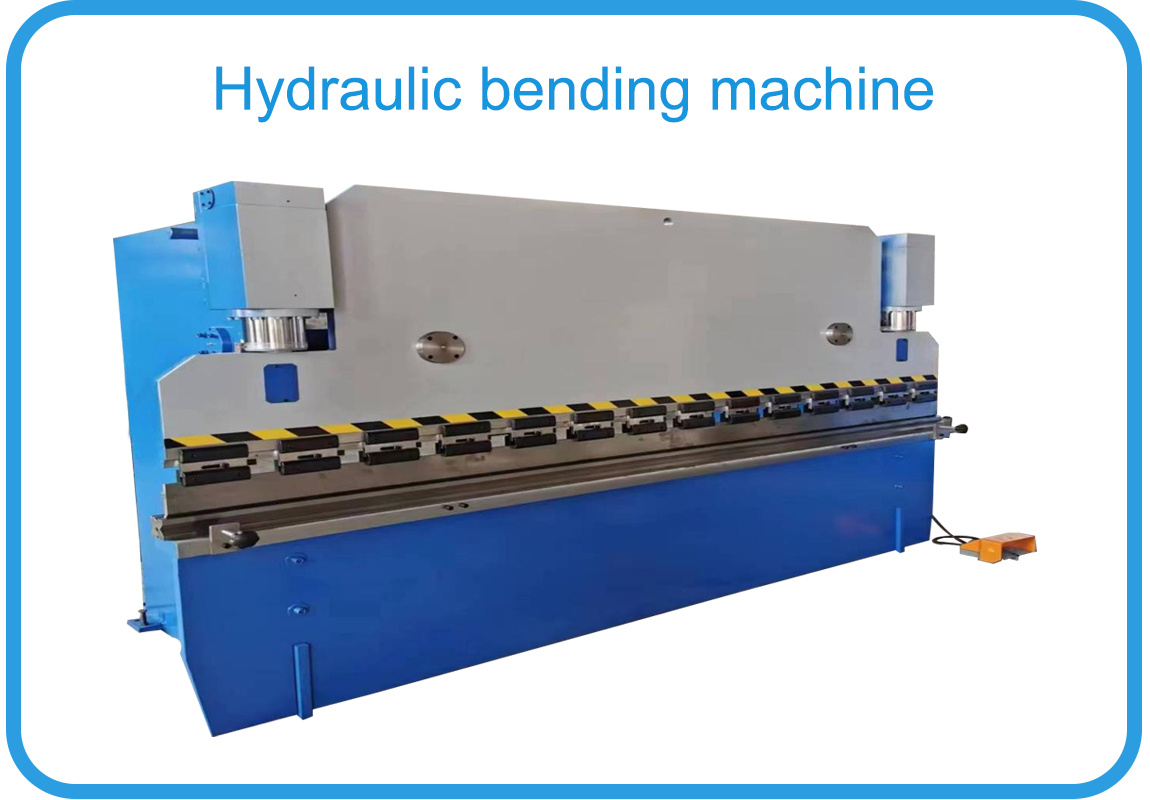

HYDRAULIC BENDING MACHINE

Hydraulic press brake bending machine is a machine tool used for bending sheet metal and plate materials. It utilizes molds to shape and form the material into specific angles or configurations. As long as it is equipped with different molds, it can be folded into different workpieces. The CNC metal bender is widely used in shipbuilding, automobiles, vehicles, mining machinery, petroleum , electric power and other industries.

Category:

SHEET METAL PROCESSING EQUIPMENT


Product Display





Product Features



1.All steel welding structure is adopted ,eliminate stress by vibration.

2.The machine has high strength and good rigidity.

3.The perfect design and manufacturing process of the machine tool can effectively ensure the manufacturing and use accuracy of the machine tool.

4.Integrated hydraulic system, sliding block upper transmission, wide speed adjustment range, stable and reliable operation.

5.Electric adjustment of rear stopper and slider stroke.



Technical Parameters



Model

Nomina pressure

(KN)

Length of worktable(mm)

Distance between frames

(mm)

Stroke Depth

(mm)

Slide stroke

(mm)

Max open height(mm)

Main Motor Power(KW)

Overall dimension

(mm)

30t/2000

300

2000

1480

200

80

285

3

2000x1000x1600

100t/2000

300

2000

1480

200

80

285

7.5

2000x1000x1600

40t/2200

400

2200

1600

250

100

320

5.5

2200x1150x1900

40t/2500

400

2500

1900

250

100

320

5.5

2500x1150x1900

63t/2500

630

2500

1970

250

100

340

5.5

2500x1600x2210

63t/3200

630

3200

2400

250

100

340

5.5

3200x1600x2210

80t/3200

800

3200

2500

250

120

350

5.5

3200x1700x2300

Support customization according to customer requirements.
