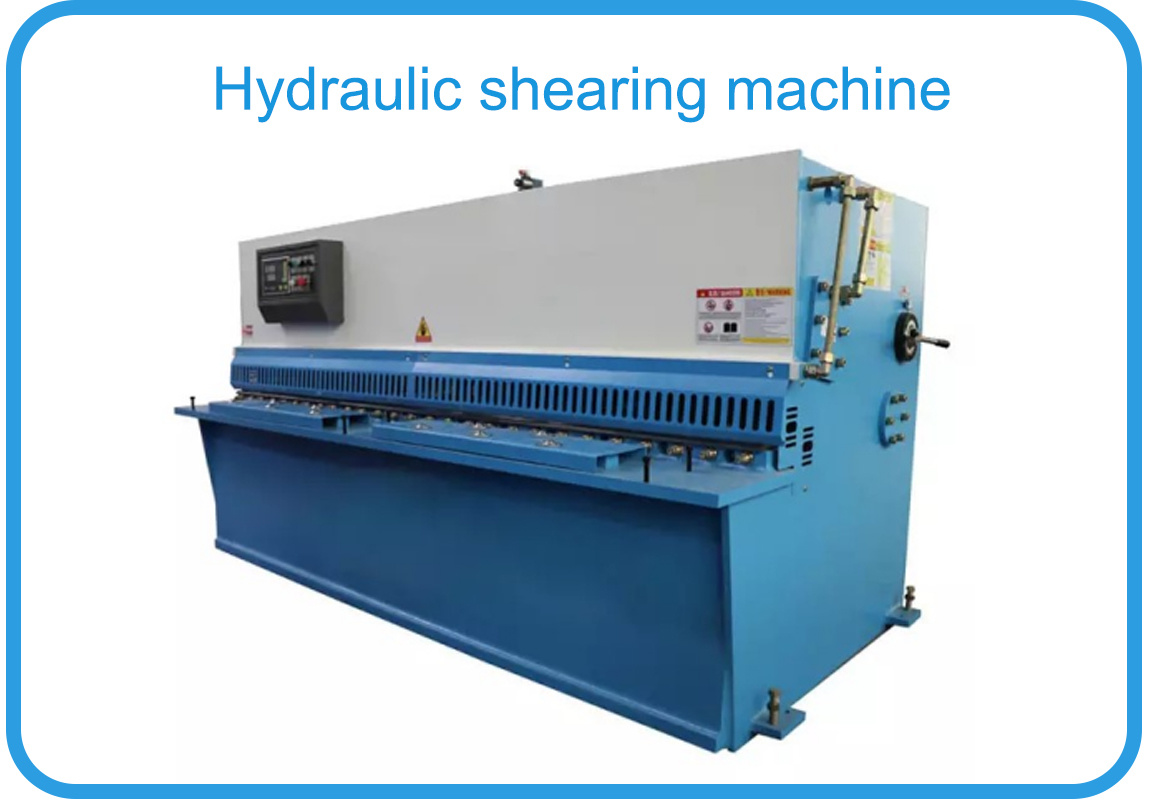

HYDRAULIC SHEARING MACHINE
Category：
SHEET METAL PROCESSING EQUIPMENT
Product Display
Product Features
1.Steel plate welding structure, hydraulic transmission, nitrogen return, convenient operation, reliable performance, beautiful appearance;
2.It has the functions of digital display of back stop position, soft limit, one-way positioning clearance prompt, and automatic counting of shearing;
3.The rear stopper is equipped with an encoder, which, together with the digital display system, makes the position display of the rear stopper more accurate, thus further improving the shearing accuracy of the machine.
4.Adjust the stroke of the upper tool holder steplessly; and adopt fence type personal safety protection device;
Technical Parameters
|
Model |
Plate thickness(mm) |
Plate Width(mm) |
Shear Angle |
Material strength（KN/cm) |
Trival Times |
Back gauge Range |
Main Motor Power(Kw) |
Overall dimension(mm) |
|
4x2500 |
4
|
2500 |
1°30’ |
≤450 |
16 |
20-500 |
5.5 |
3040x1610x1620 |
|
4x3200 |
3200 |
1°30’ |
≤450 |
13 |
20-500 |
5.5 |
3840x1610x1620 |
|
|
4x4000 |
4000 |
1°30’ |
≤450 |
10 |
20-600 |
7.5 |
4600x1700x1700 |
|
|
4x6000 |
6000 |
1°30’ |
≤450 |
5 |
20-800 |
7.5 |
6460x2100x3200 |
|
|
6x2000 |
6
|
2000 |
1°30’ |
≤450 |
15 |
20-500 |
7.5 |
2540x1610x1620 |
|
6x2500 |
2500 |
1°30’ |
≤450 |
15 |
20-500 |
7.5 |
3040x1610x1620 |
|
|
6x4000 |
4000 |
1°30’ |
≤450 |
9 |
20-600 |
7.5 |
4620x1750x1700 |
|
|
6x6000 |
6000 |
1°30’ |
≤450 |
5 |
20-800 |
18.5 |
6480x2100x2300 |
|
|
8x2500 |
8
|
2500 |
1°30’ |
≤450 |
11 |
20-500 |
7.5 |
3040x1700x1700 |
|
8x3200 |
3200 |
1°30’ |
≤450 |
8 |
20-500 |
7.5 |
3860x1700x1700 |
|
|
8x4000 |
4000 |
1°30’ |
≤450 |
10 |
20-600 |
11 |
4650x1700x1700 |
|
|
8x6000 |
6000 |
1°30’ |
≤450 |
8 |
20-800 |
18.5 |
6480x2100x2350 |
Support customization according to customer requirements.
