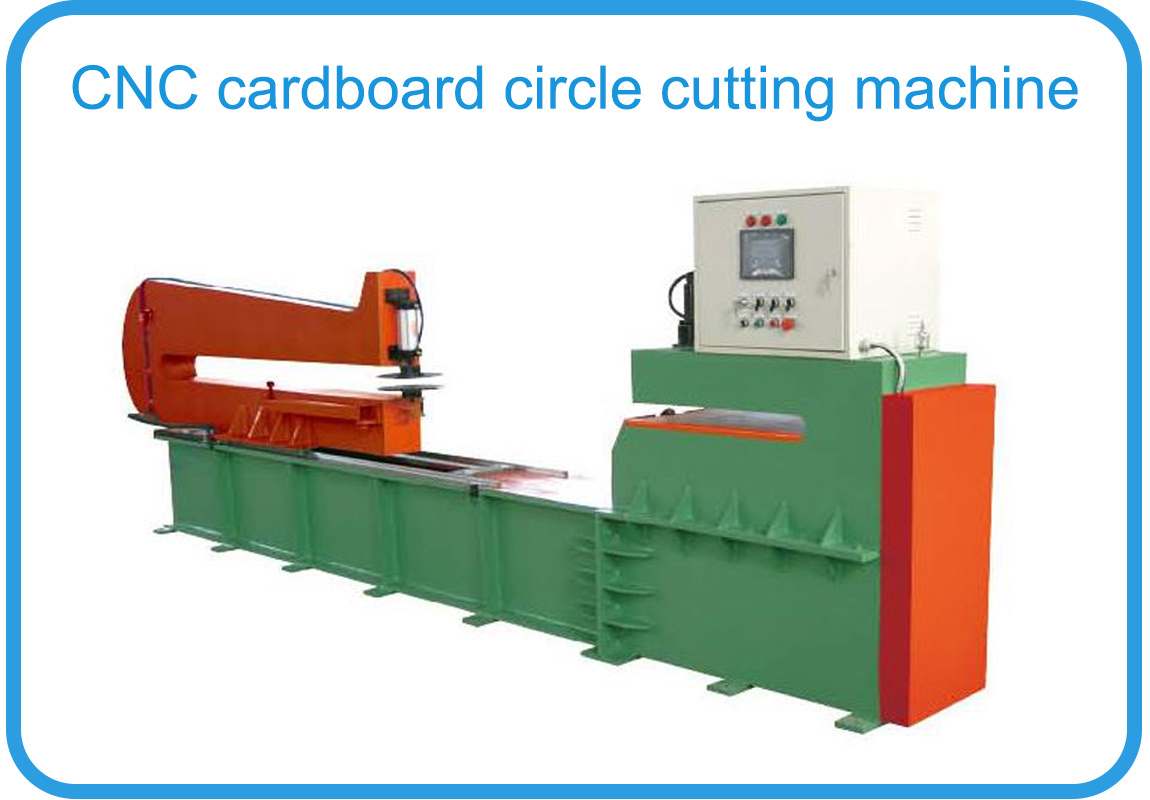

INSULATED CARDBOARD CIRCULAR SHEARING MACHINE

This series of equipment is mainly used for cutting various insulating cardboard circular ring, suitable for industries such as transformers and motors. The machine can automatically adjust the position of the rear frame to cut circular rings that meet different diameter requirements.

Category：

INSULATION PROCESSING EQUIPMENT

WhatsApp : +86-19853436696

Email : tinayyds@hotmail.com

Message

Product Display

Product Features

1.Safe and reliable. All transmission parts of this machine are considered for reliability and maintenance convenience, and protective measures are installed to ensure personal safety.

2.The machine automatically adjusts the position of the cutting blade to adapt to workpieces of different thicknesses.

3.Wide processing range and high level of production automation.

4.The workpiece size positioning and tool feed are controlled by a program, and the servo motor drives the workpiece to process the size accurately with high precision. The operation is time-saving, labor-saving, and the production efficiency is high.

5.There are bending arm adjustment brackets on both sides of the machine, which are used to keep the cardboard flat when cutting large cardboard.

6.The upper and lower tool spindles are both in an active mode, and the speed is controlled by frequency conversion for forward and reverse rotation. The tool design is reasonable, and the workpiece is smooth, with small burrs and high quality.

Technical Parameters

Parameter	Item	SKYJ-10	SKYJ-15	SKYJ-20
Main motor	KW	3	3	3
Machine weight	kg	1000	1300	1500
Motor speed range	r/min	0～1440 (Frequency converter stepless speed regulation)	0～1440 (Frequency converter stepless speed regulation)	0～1440 (Frequency converter stepless speed regulation)
Workpiece diameter	mm	200-1000	200-1500	200-2000
Thickness	mm	0.5-3	0.5-3	0.5-3
Tailstock movement speed	M/min	0～3.5 min	0～3.5 min	0～3.5 min
Support ordering non-CNC round cutting machines

Support customization according to customer requirements.

Our Factory

Why Choose Us?

We have our own factory.

Products can be customized

High quality product and good price.

Good Pre-sale、on sale and after sales service.

Short delivery time.

Exported all over the world, with rich experience.
