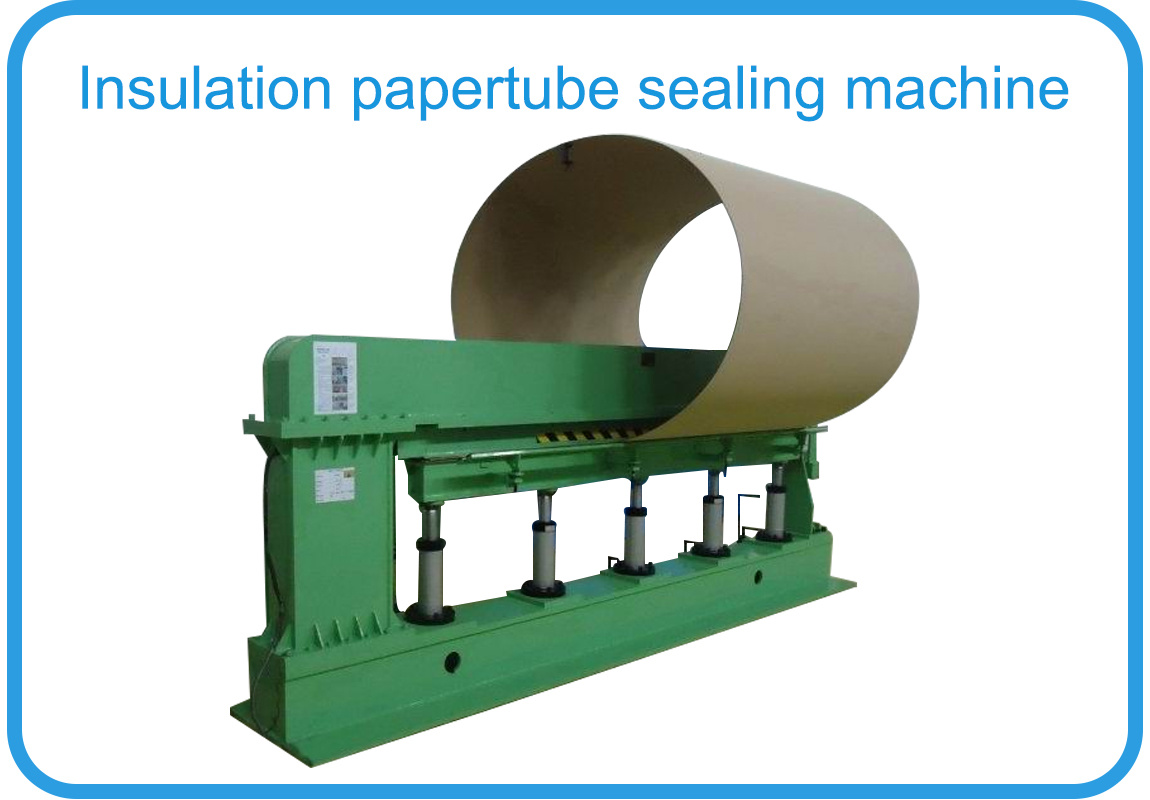

INSULATION PAPERTUBE SEALING MACHINE

This equipment is designed for the hot pressing and bonding of large insulation paper tubes in the transformer industry. It is a specialized processing equipment that can perform hot pressing and bonding molding of rolled insulation paper tubes under certain pressure and temperature conditions.

Category:

INSULATION PROCESSING EQUIPMENT


Product Display





Product Features



1.This specialized machine tool consists of four main parts: mechanical parts (base, pressure beam), hydraulic system, electrical control, heating, etc. The machine base and pressure beam are welded with steel plates and have undergone aging treatment. The hydraulic station and hydraulic cylinder are made of high-quality domestic products.

2.The hydraulic cylinder adopts a top type, and the number of hydraulic cylinders should ensure that the pressure beam and mold have sufficient strength and stiffness to reduce deformation during operation. The hydraulic system is controlled by a CNC touch screen, and the pressure and holding time can be set arbitrarily according to user requirements.

3.The machine tool has the function of setting and regulating temperature, pressure, and holding time coefficient.

4.The machine tool is equipped with an electric cylindrical support frame.



Technical Parameters

Model

NR-1500

RN-2000

Thickness of adhesive cardboard

2-8mm

2-8mm

Length of the hot adhesive paper cylinder

1500mm

2000mm

Width of the adhesive interface

150mm

160mm

Diameter range of the hot adhesive paper cylinder

300-1000mm

400-2000mm

Heating method

Heat transfer oil

Heat transfer oil

Adhesive temperaturecº)

70-110cº

70-110cº

Max pressure of hydraulic templateMPa

12adjustable

12adjustable

Main control mode

CNC touch screenPanasonic PLC

CNC touch screenPanasonic PLC

Support customization according to customer requirements.
