INTERLAMINAR INSULATION PAPER FOLDING MACHINE

This device is mainly used to fold the edge of the insulation paper of transformer coils layers, forming an end insulation structure on the two sides of the layer insulation. It improves the mechanical strength of the coil, winding efficiency, and reduces material costs.

Category:

INSULATION PROCESSING EQUIPMENT


Product Display





Product Details

Technical Parameters

No.

Parameter

ZBJ-800

1

Width of insulation paper(mm)

160-800

2

Thickness of insulation paper(mm)

0.16-0.21

3

Specification of insulating paper roll (mm)

Inner hole:φ76 ,Outer diameter: ≤φ400

4

Formed paper roll size (mm)

Inner hole:φ76 ,Outer diameter: ≤φ400

5

Folding Width(mm)

7/10mm

6

Number of folding layers

5(including bottom layer)

7

Folding forming speed (m/min)

0-20 (variable frequency stepless speed regulation)

8

Knife Tool outer diameter (mm)

φ84

9

Number of Knife Tool

8 pcs

Support customization according to customer requirements.



Equipment Structure

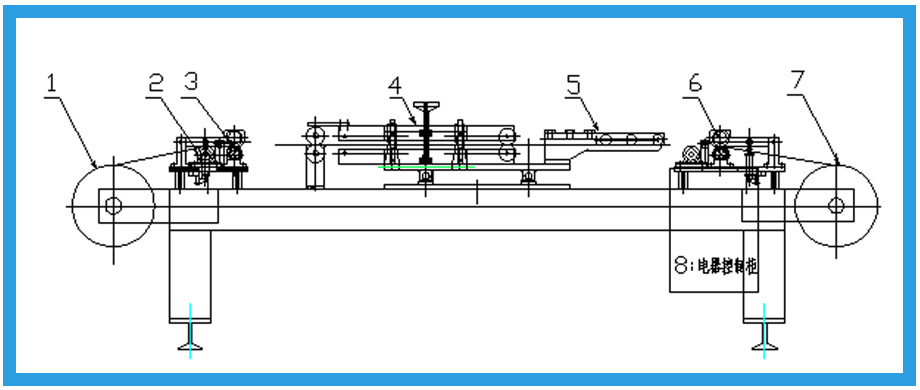

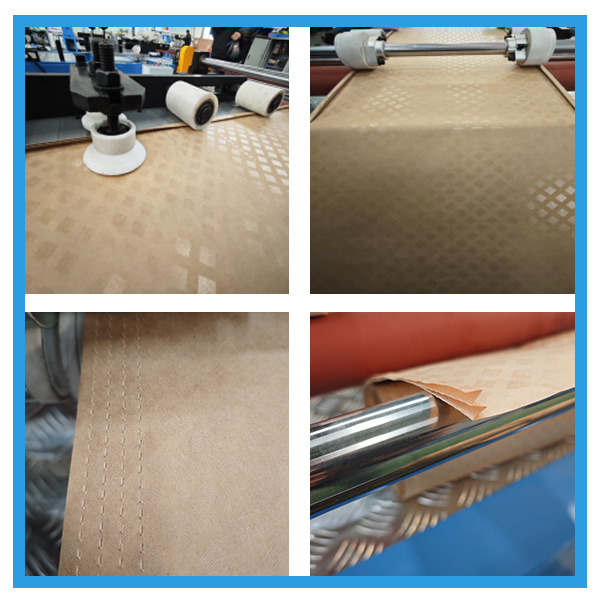

The folding machine consists of 1. uncoiling device, 2. guiding device, 3. pinhole forming device, 4. folding channel, 5. pressing device,6. towing device, 7. winding device,8. electrical system and pneumatic system.

The overall structure, folding forming principle, and operation control method of this folding machine greatly shorten the development cycle, ensuring high productivity and reliability of the machine.
