PNEUMATIC CIRCULAR CUTTING MACHINE

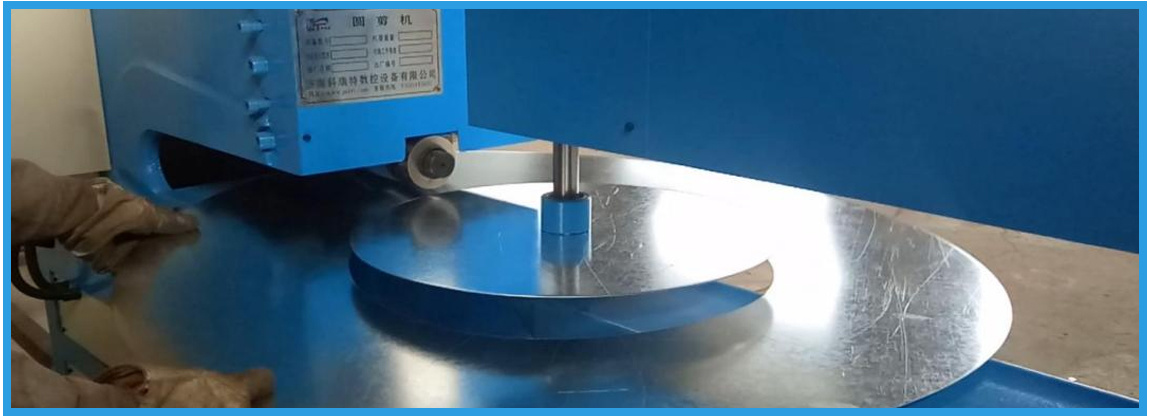

This series of equipment is mainly used to cut the inner and outer circle of metal plate,which is suitable for various industries such as aluminum circle sheet, steel coil side guard plate, vessel head, draught fan and so on.The machine can cut the disc and circular ring which meet the requirements of different diameters by adjusting the position of the after-frame through the lead screw.

Category:

SHEET METAL PROCESSING EQUIPMENT


Product Display

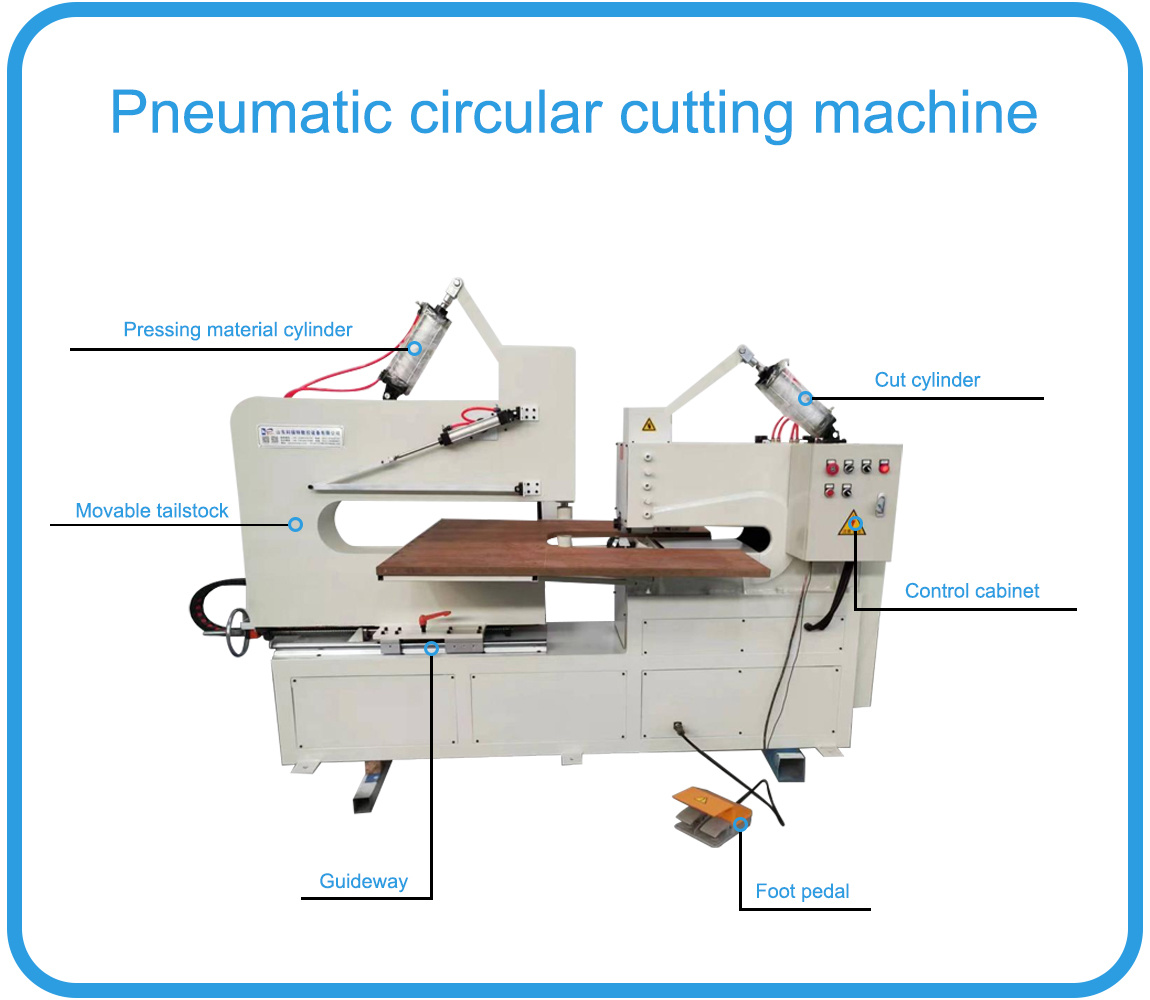

Pneumatic circular shearing machine is made up of fuselage, machine head and after-frame.The fuselage is composed of thickened steel plate and pipe welding failure treatment,which has enough strength and rigidity.The machine head and after-frame are on the rack,and after-frame can move along the guide rail.According to the manual adjustment,the tangential circle diameter can be adjusted.The lower cutter is fixed,and the upper cutter is adjustable,which is easy to feed and take down the workpiece.The motor is placed inside the rack to save space.



Product Features





1.Easy to adjust: By adjusting the position of the after-frame and locking it,we can cut parts in batches.

2.Manual lead screw guide rail sliding feed:The tail seat of the equipment adopts manual lead screw guide rail sliding feed,thus improving the processing performance and precision of the equipment.

3.Safe and reliable: The transmission parts of the machine are considered to be reliable and convenient for maintenance,and equipped with protection to ensure safety.

4.Positioning: The equipment has pneumatic control XY axis positioning processing square plate positioning center, do not need marking measurement,the scissors turn pneumatic positioning automatic lay down, stop and reset, processing efficiency is very high.

5.Adjustable upper cutter:By pneumatic adjustment on the position of the cutter ,to adapt to workpieces with different diameters and thickness. And the upper and lower cutters are all initiative.



Technical Parameters

Name

Units

YJ-10

Pneumatic circular shearing machine

YJ-15

Pneumatic circular shearing machine

YJ-20

Pneumatic circular shearing machine

Main motor

KW

2.2

2.2

2.2

Machine weight

T

1

1.4

1.8

Supply voltage

V

380

380

380

Max workpiece diameter

mm

1000

1500

2200

Min workpiece diameter

mm

210

230

250

Max thickness of galvanized sheet

mm

0.5-2.5

0.8-2.5

0.8-2.5

Max thickness of aluminium sheet

mm

0.5-3.5

0.5-3.5

0.5-3.5

Max thickness of stainless steel sheet

mm

0.3-1.2

0.3-1.2

0.3-1.2

Shear speed

m/min

30

30

30

Outline Dimensions

mm

2600×1200×1600

2800×1200×1600

3200×1200×1600

Device type

type

All pneumatic

All pneumatic

All pneumatic

Support customization according to customer requirements.
