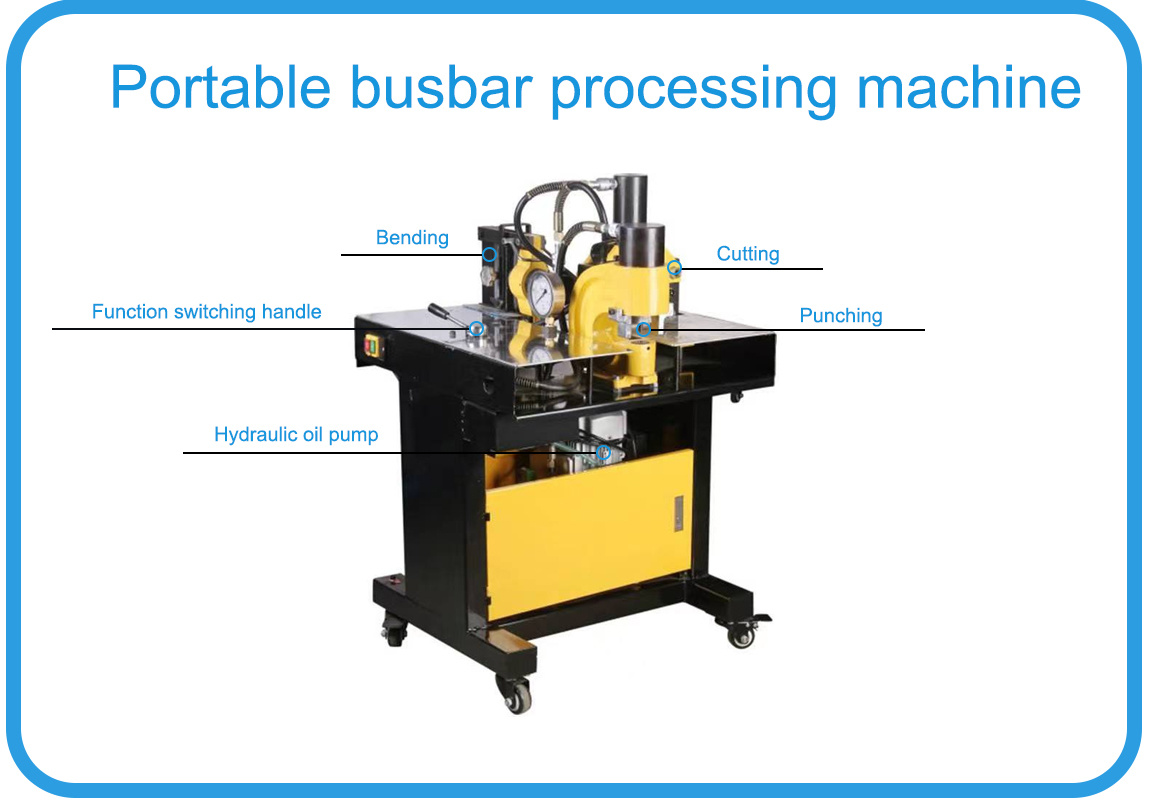

PORTABLE BUSBAR MACHINE

Portable busbar processing machine is mainly used to process copper and aluminum busbars of various specifications. As long as the user selects the corresponding processing unit, the bus bar can be punched, sheared and bent. With high production efficiency, it is an ideal equipment necessary for electrical manufacturing industries such as switchgear and transformer.

Category:

BUSBAR PROCESSING MACHINE


Product Display

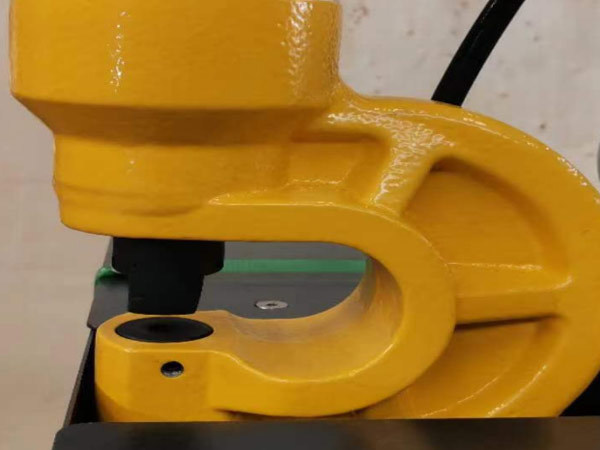

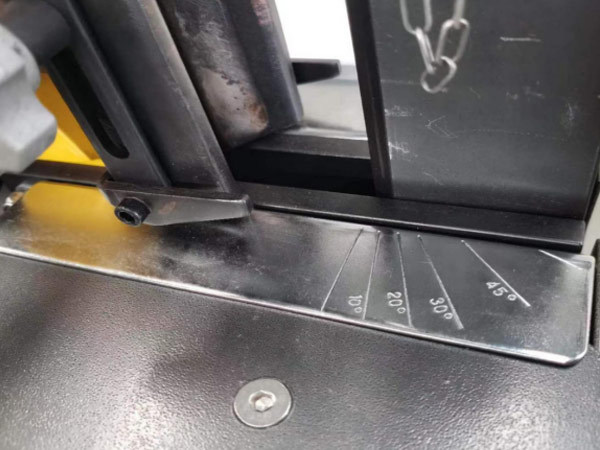

Bending(Accurate positioning) Punching(Easy mold replacement)

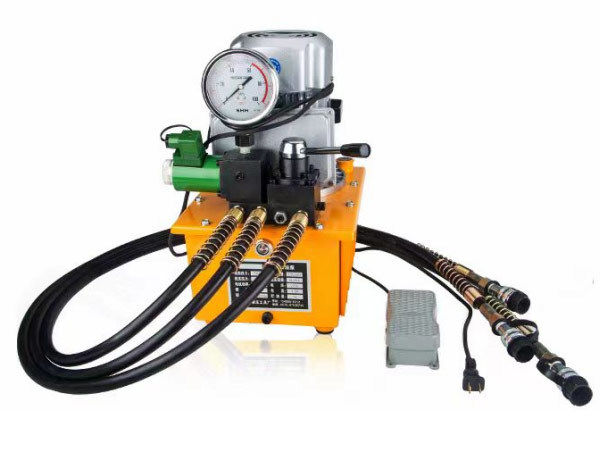

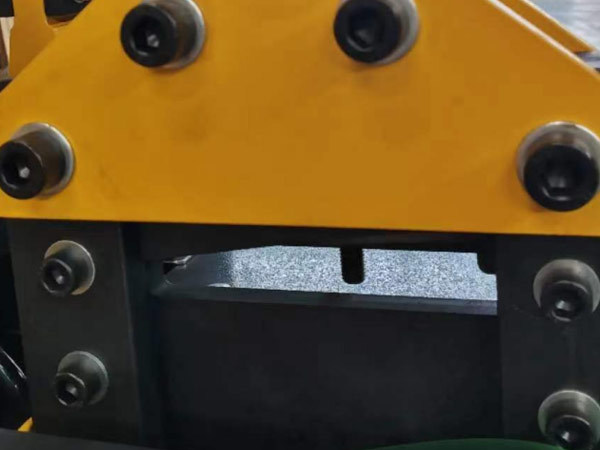

Cutting(No burrs) Triple circuit oil pump(Improve production efficiency)

Technical Parameters

Parameter

BMX-30-150

BMX-30-200

BMX-30-PL

Max punching force(T)

31

50

31

Punching range

Φ720.5

Φ720.5

Φ720.5

Max punching thickness(mm)

10

12

10

Max shearing thickness(mm)

10

12

10

Max shearing width(mm)

150

200

150

Max bending force(T)

20

50

20

Max flat bending size(mm)

150x10

200x12

125x10

Max vertical bending size(mm)

/

/

125x10

Weight(kg)

170

200

180

Support customization according to customer requirements.

Configuration Checklist

NO.

Item

Quantity

1

Punching mold

6 sets:7/9/11/13/17/21

2

Oil pipe

1 piece

3

High pressure oil pump

1 piece

4

Equipment manual

1 set
