AUTO WINDING MACHINE

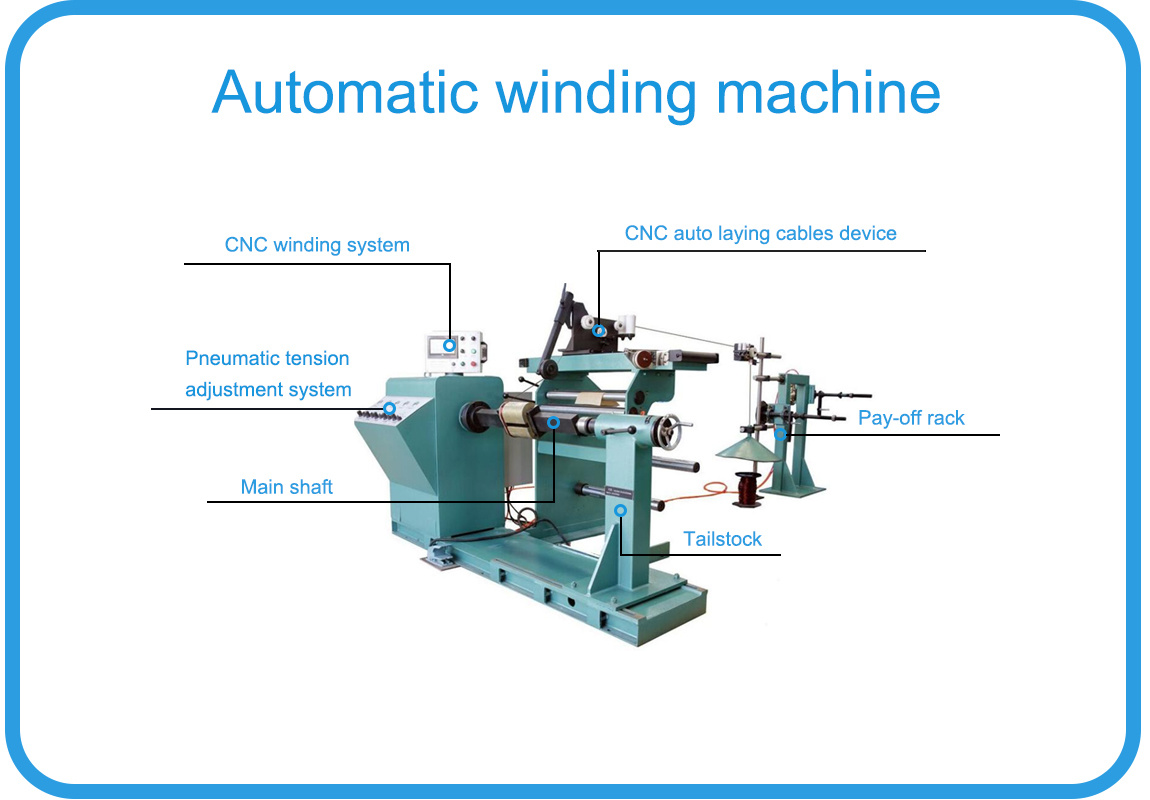

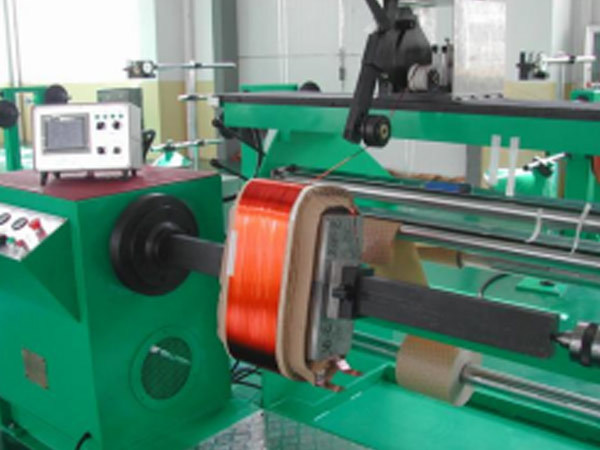

The winding machine RX-08SK is composed of main box, guide rail, rear tailstock,automatic laying cables and electrical control . The machine is suitable for winding transformer coils.The main machine of the winding machine is welded with thickened steel plate.

Category:

TRANSFORMER WINDING MACHINE


Product Display





Technical Parameters

Parameter Type

RX-08SK CNC winding machine

Central height

850 mm

Disc diameter

Φ300 mm

Automatic wire distance

1000 mm

Max torque

600 N.M

Motor power

4KW

Max tension wire

300N

Max stoke range of tailstock

500-1600 mm

Speed range

0~200 r/min

Range of enameled wire winding

0.5~5 mm

Range of winding flat wire

3×1.2~10×3mm

Wire laying speed

1 m/min

Min spacing of adjusting wire diameter

0.01mm

Equipment weighing

800 kg

Total weight

1500 kg

Support customization according to customer requirements.



Product Features

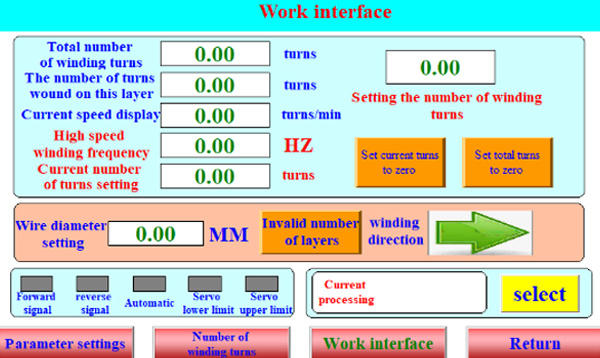

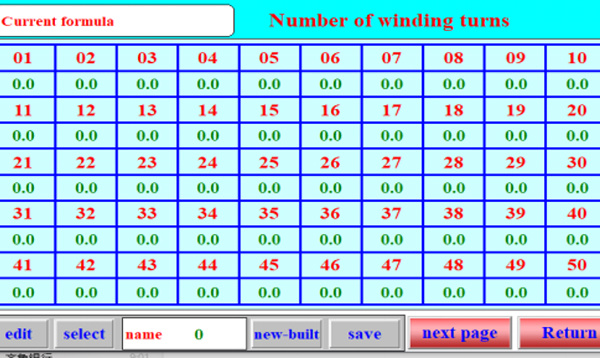

Support display both the number of coils that have been wound on this layer and the total number of coils that have been wound. The wiring direction of the wound coils can be displayed and set, and the equipment operation is clear, making it easy for winding workers to observe and correct. Support setting the number of turns for each layer separately, and can store multiple sets of parameters (each set of parameters can be numbered for easy identification by operators). After the first set and stored, it can be directly used without further editing, greatly improving production efficiency.

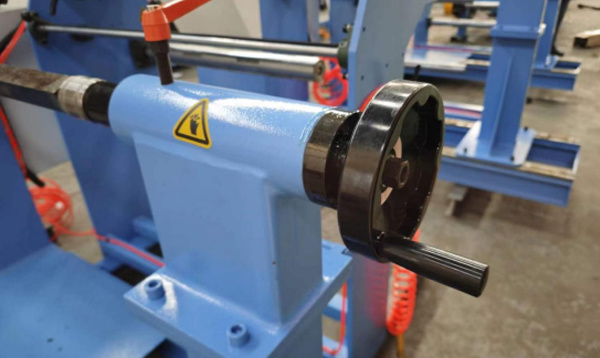

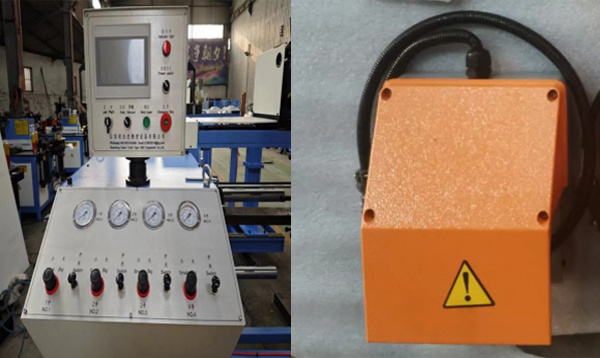

Button station centralized control, foot switch or button control spool start and stop. The tailstock can be moved axially on the guide rail of the base manually to meet the needs of different length linear dies.

Equipped with automatic brake to prevent reversing when winding stops. Adjustable speed, high accuracy, and even cable arrangemen.

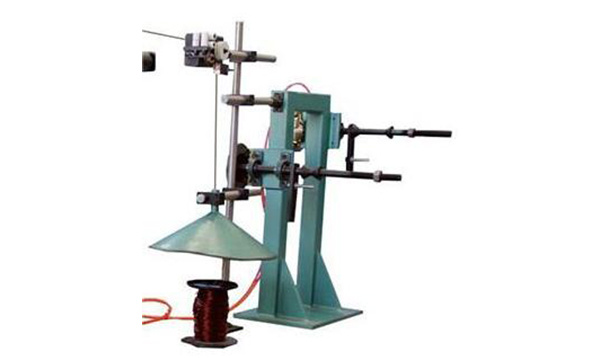

The pay-off rack is equipped with pneumatic tension display, adjustable tension, and stable payout.



Configuration Checklist



Accessories

Quantity

40×40solid square shaft

1 pc

Mohs4# live center

1 pc

Maintenance tool

1 pc

Machine instruction

1 pc
