TRANDFORMER COIL WINDING MACHINE

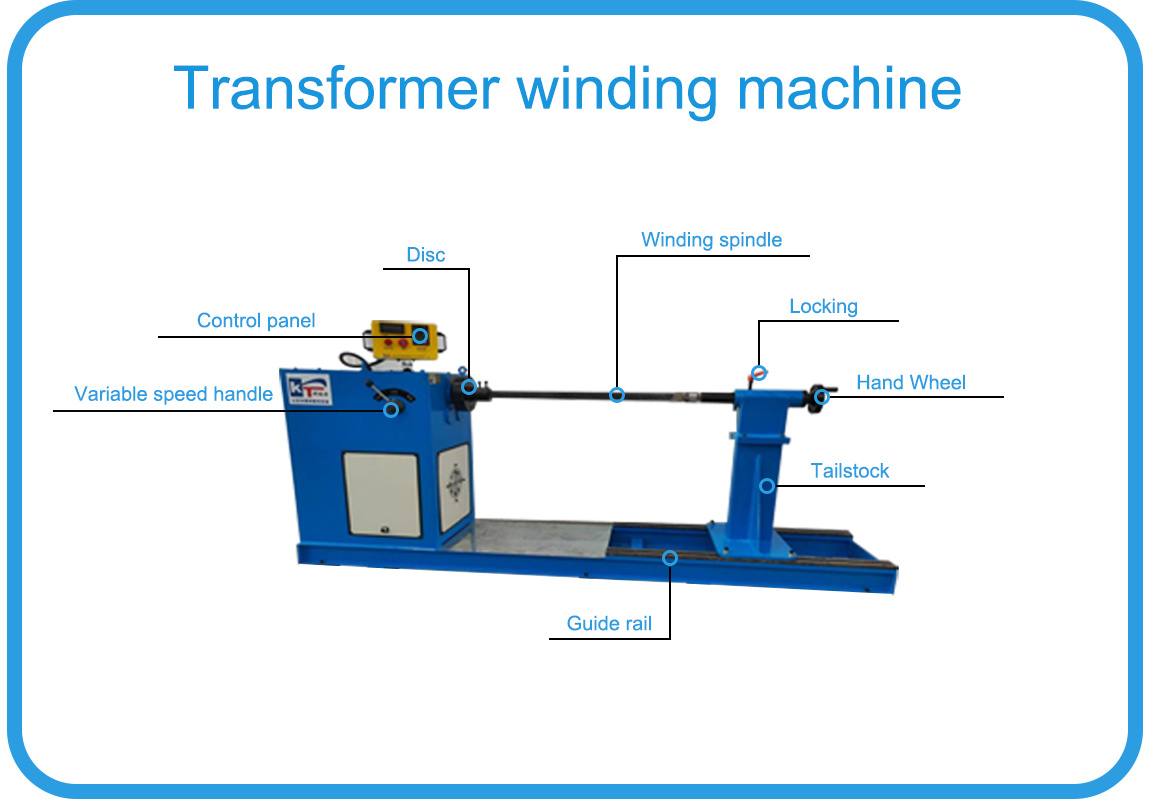

The winding machine is composed of main box, guide rail, rear tailstock and electrical control.The machine is suitable for winding high and low voltagecoils.Support customization of multiple specifications

Category:

TRANSFORMER WINDING MACHINE


Product Display



Technical Parameters

Parameters

RX-1T winding machine

RX-2T winding machine

RX-3T winding machine

Central height

850mm

900mm

1000mm

Disc diameter

Φ200 mm

Φ300 mm

Φ400 mm

Tailstock adjustment range

800-1600mm

800-1600mm

800-2000mm

Max torque of high and low speed type

1300N.M

1900N.M

2500N.M

Max torque of ordinary model

800N.M

1500N.M

3000N.M

Motor power

4KW

5.5KW

7.5KW

Counting accuracy

Counter0.1circle

CNC panel0.01circle

Counter0.1circle

CNC panel0.01circle

Counter0.1circle

CNC panel0.01circle

Speed range of High and low speed type



Low:0-30r/min

High:0-180 r/min

Low:0-30r/min

High:0-120 r/min

Low:0-20r/min

High:0-80 r/min

Speed range of ordinary models

0-140 r/min

0-70 r/min

0-60 r/min

Load capacity

1000KG

2000KG

3000KG

Dimensions

2700mm*800mm*1300mm

2850mm*1000mm*1400mm

3250mm*1100mm*1500mm

Support customization according to customer requirements.



Product Details

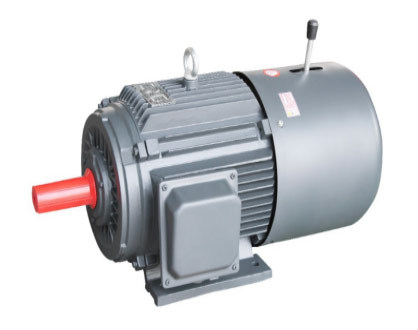

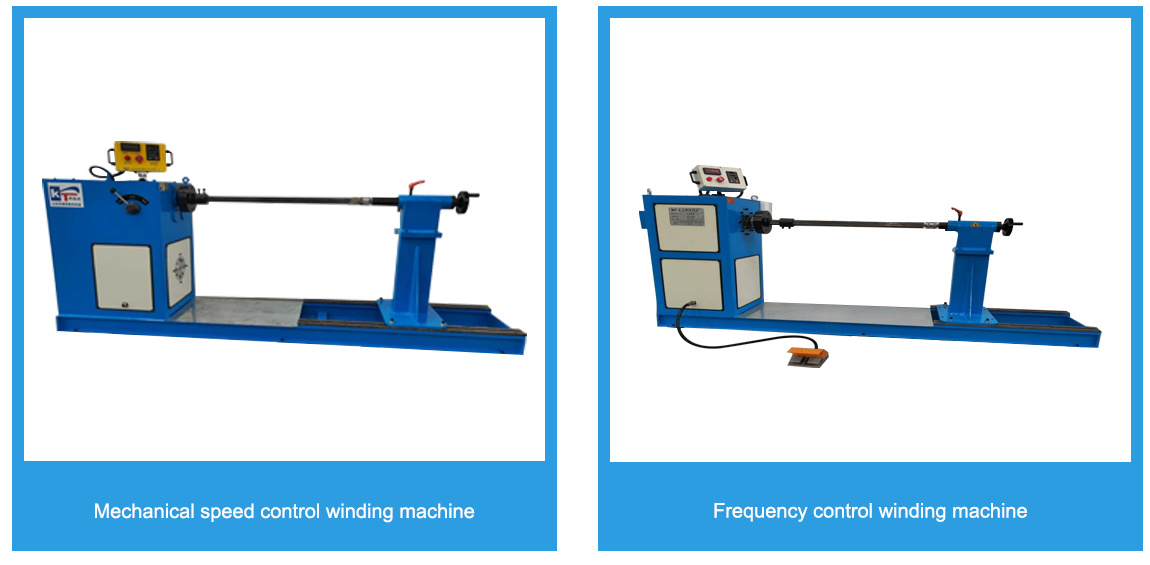

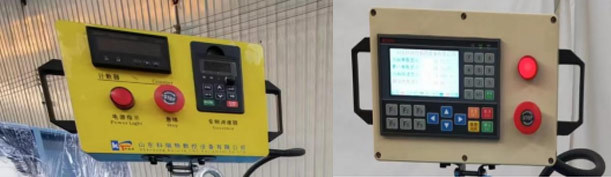

The winding machine adopts double speed regulation,mechanical speed regulation and frequency conversion speed regulator to realize stepless speed regulation.the number of turns can be set through the counter or the numerical control key screen(optional) to stop automatically.

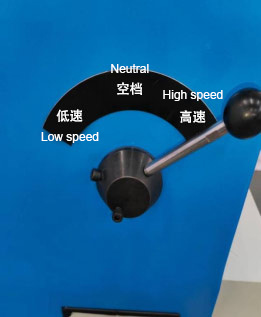

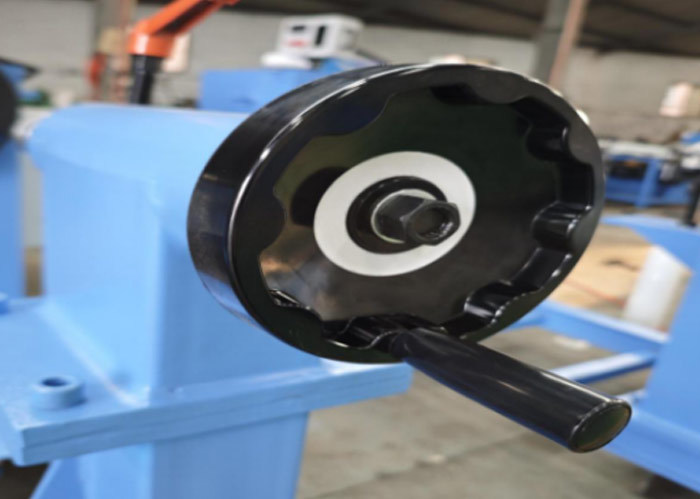

The double gear in the gearbox is moved by the speed change handle to realize the high,empty and low speed changes of the main shaft.(ONLY HIGH AND LOW GEAR MODEL HAVE THIS FUNCTION) By rotating the hand wheel,the live center can be extended or returned,which is convenient to move the mold up and down,and improve the strength.

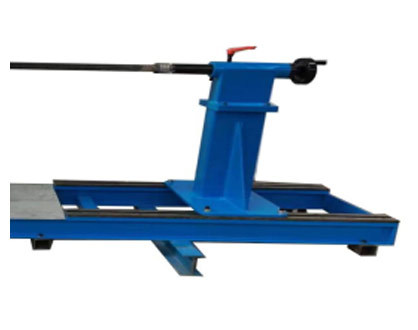

Equipped with an automatic brake device to prevent backing up when winding stops. The tailstock can be moved axially on the guide rail of the base manually to meet the needs of different length linear dies.

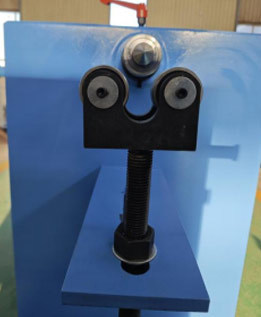

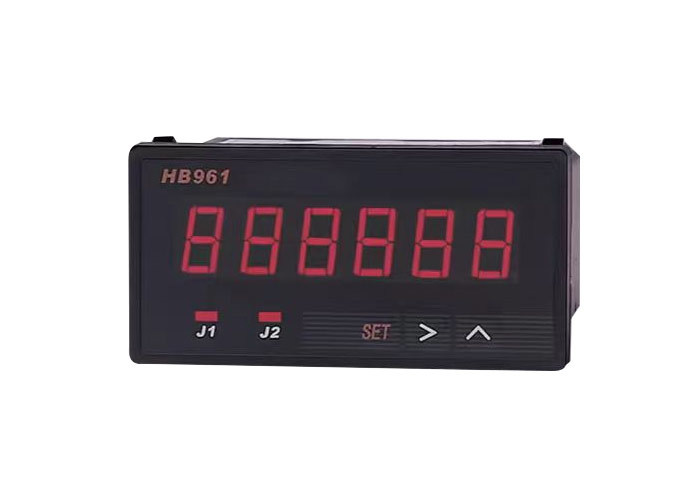

Support preset the number of coil turns and control the positive inversion; the high precision encoder can count the positive and negative,and has the function of power-off memory. The locking handle can lock the top roller, tighten the winding mold, and support its weight.

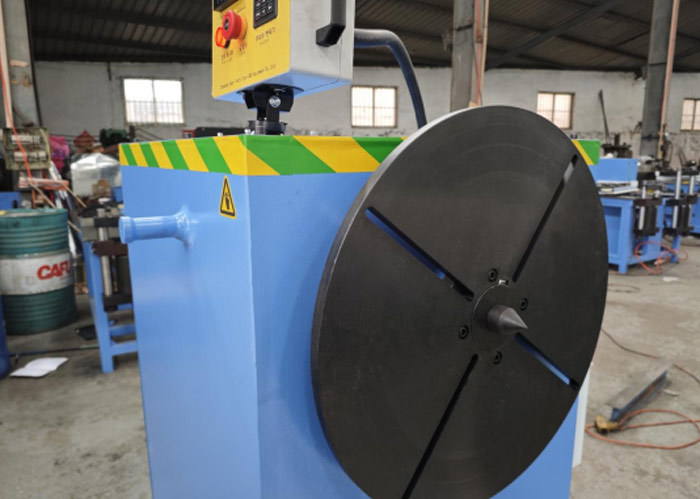

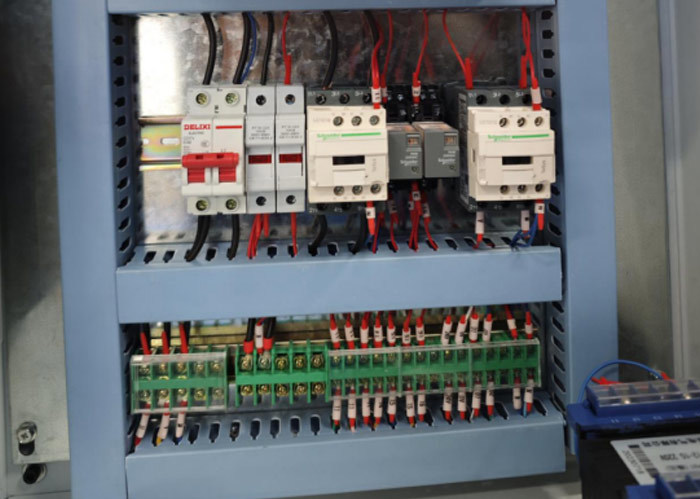

The disc plays the role of fixing the winding die and transmitting torque. Electronic control system: The electronic control system is composed of electric control cabinet, frequency converter,counter,high precision encoder and other electrical appliances.

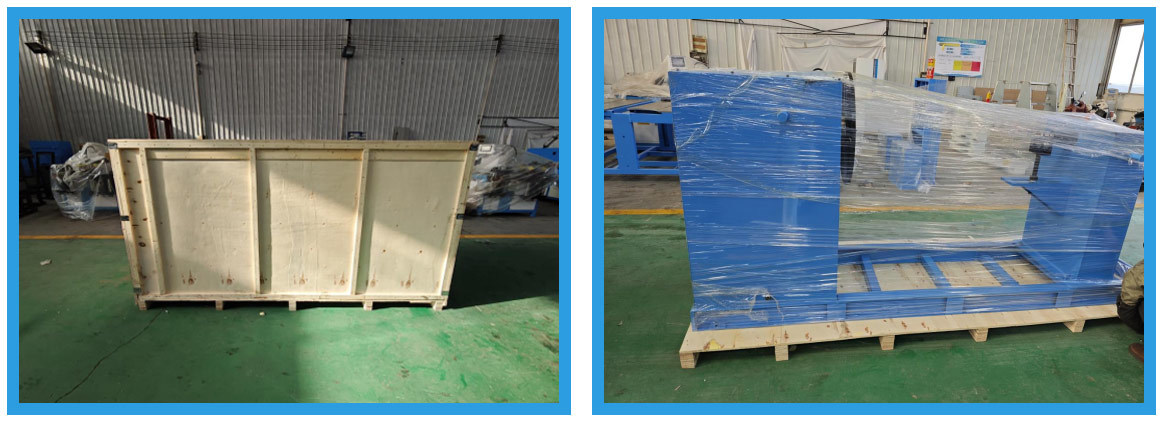

Packing and Shipping
