CNC BUSBAR MACHINE-ZTMX-50 SERIES

ZTMX-50 series busbar machine can respectively punching, cutting, bending copper or aluminum busbar, with high production efficiency.ZTMX-50 series busbar processing machine is mainly applicable to the manufacturing industry of high and low voltage switch cabinet and transformer.

Category:

BUSBAR PROCESSING MACHINE


CNC BUSBAR MACHINE-ZTMX-30

CNC BUSBAR MACHINE-ZTMX-50

CNC BUSBAR MACHINE-ZTMX-80

Product Display



Product Features









Product Details

1.The CNC system adopts the highest configuration Siemens system, calculating various bending angles and unfolding lengths of copper busbar to save materials for users.Store multiple sets of parameters for next use without the need for repeated editing.

2.The graduation ruler of the bending station adopts laser engraving, which will not cause damage to the bottom of the copper busbar due to friction when working

3.Adopt Siemens PLC and Schneider Electric to ensure the safety and stability of the machine, avoiding machine fault and making it more durable.

4.The punching and shearing stations are equipped with manual positioning rulers, which can accurately position the copper busbar without the need for marking during the work process, greatly improving work efficiency and processing accuracy.

5.Equipped with automatic refueling function.Adopt three power motors are used, corresponding to the punching, shearing, and folding stations, to ensure stable power for the three stations, each performing its own duties without interfering with each other.

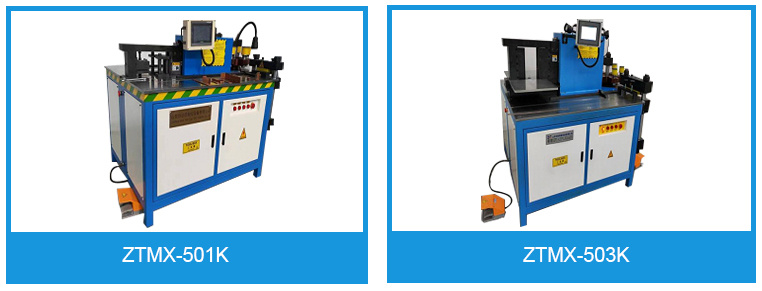

Different Products

(1)Motor:501K has one motor,punching, shearing, and bending cant work at the same time;503K has three motors, and punching, shearing, and bending can work simultaneously.

(2)Efficiency: 501K is suitable for customers with smaller workloads. 503K has high efficiency and is more suitable for customers with larger workloads



Technical Parameter

Function

Item

ZTMX-501k

ZTMX-503k

Punching





Max power(KN)

550

550

Punching Diameter

(mm)

φ4.3-φ32

φ4.3-φ32

Max thickness

(mm)

18

18

Shearing/cutting



Max thickness

(mm)

18

18

Max width

(mm)

260

260

Bending





Max power

(KN)

550

550

Max width

(mm)

260

260

Max thickness (mm)

18

18

Horizontal bending

Max  size

110*10

110*10

Power of Main Motor

(KW)

5.5

3x5.5(16.5KW)

Weight of machine

(T)

1.8

2.2

Outline Dimensions

(mm)

2000x1500x1400

2000x1500x1500

Size of worktable



One floor

1540mm x 1450mm

1540mm x 1450mm

Two floors



1000mm x 500mm

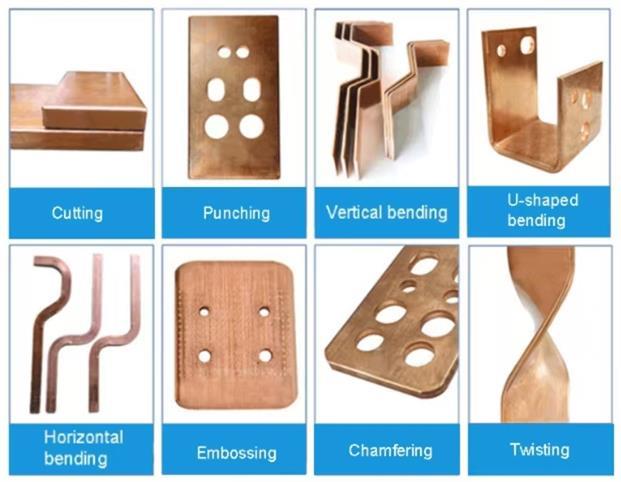

Sample Display





Product Accessories



No.

Item

Quantity

1





Punching die



8 sets



Round hole:7/9/11/13/17/21

Oval hole:11×15/13×18

2

Vertical bending die

2 sets

(R5/R10)

3

Horizontal bending die

1 set

4

Die pins

2 pieces

5

Equipment manual

1 set

6

Foot switch

3 pairs

7

U-bending die

1 piece

8

Spare proximity switch

1 piece

9

Equipment common tool

1 set

10

Punching laser positioning light

1 piece

11

Punching positioning needle

1 piece

12

Embossing die

1 set

13

Spare sealing ring

1 piece

14

Level the ground angle

4 pieces

15 Cutting blade 1 pc (Installed on machine)
16 Small bending mold 1 set(R3)
